We shall now present generic model.py and controller.py files that work with any compute function (!). This example will demonstrate some advanced, powerful features of Python. The source code is found in the vib3 directory.

Inspecting function signatures. The basic idea is that the Python module inspect can be used to retrieve the names of the arguments and the default values of keyword arguments of any given compute function. Say we have some

def mycompute(A, m=0, s=1, w=1, x_range=[-3,3]):
    ...
    return result

import inspect
arg_names = inspect.getargspec(mycompute).args
defaults  = inspect.getargspec(mycompute).defaults

arg_names = ['A', 'm', 's', 'w', 'x_range']
defaults = (0, 1, 1, [-3, 3])

We have all the argument names in arg_names and defaults[i] is the default value of keyword argument arg_names[j], where j = len(arg_names) - len(defaults) + i.

Generating the model. Knowing the name name of some argument in the compute function, we can make the corresponding class attribute in the InputForm class by

setattr(InputForm, name, FloatForm())

class InputForm:
    A = FloatForm()

class InputForm:
    pass  # Empty class

arg_names = inspect.getargspec(mycompute).args
for name in arg_names:
    setattr(InputForm, name, FloatForm())

However, we can do better than this: for keyword arguments the type of the default value can be used to select the appropriate form class. The complete model.py file then goes as follows:

"""
Example on generic model.py file which inspects the arguments
of the compute function and automatically generates a relevant
InputForm class.
"""

import wtforms
from math import pi

from compute import compute_gamma as compute
import inspect
arg_names = inspect.getargspec(compute).args
defaults  = inspect.getargspec(compute).defaults

class InputForm(wtforms.Form):
    pass

# Augment defaults with None elements for the positional
# arguments
defaults = [None]*(len(arg_names)-len(defaults)) + list(defaults)
# Map type of default to right form field
type2form = {type(1.0): wtforms.FloatField,
             type(1):   wtforms.IntegerField,
             type(''):  wtforms.TextField,
             }

for name, value in zip(arg_names, defaults):
    if value is None:
        setattr(InputForm, name, wtforms.FloatField(
            validators=[wtforms.validators.InputRequired()]))
    else:
        if type(value) in type2form:
            setattr(InputForm, name, type2form[type(value)](
                default=value,
                validators=[wtforms.validators.InputRequired()]))
        else:
            raise TypeError('argument %s %s not supported' %
                            name, type(value))

if __name__ == '__main__':
    for item in dir(InputForm):
        if item in arg_names:
            print item, getattr(InputForm, item)

(The compute_gamma function imported from compute is the only application-specific statement in this code and will be explained later.)

Generating the view. The call to compute in the controller.py file must also be expressed in a general way such that the call handles any type and number of parameters. This can be done in two ways, using either positional or keyword arguments.

The technique with positional arguments is explained first. It consists of collecting all parameters in a list or tuple, called args, and then calling compute(*args) (which is equivalent to compute(args[0], args[1], ..., args[n]) if n is len(args)-1). The elements of args are the values of the form variables. We know the name of a form variable as a string name (from arg_names), and if form is the form object, the construction getattr(form, name).data extracts the value that the user provided (getattr(obj, attr) gets the attribute, with name available as a string in attr, in the object obj). For exampe, if name is 'A', getattr(form, name).data is the same as form.A.data. Collecting all form variables, placing them in a list, and calling compute are done with

arg_names = inspect.getargspec(compute).args
args = [getattr(form, name).data for name in arg_names]
result = compute(*args)

Our InputForm class guarantees that all arguments in compute are present in the form, but to be absolutely safe we can test if name is present in the form object:

args = [getattr(form, name).data for name in arg_names
        if hasattr(form, name)]

A potential problem with the args list is that the values might be in wrong order. It appears, fortunately, that the order we assign attributes to the form class is preserved when iterating over the form. Nevertheless, using keyword arguments instead of positional arguments provides a completely safe solution to calling compute with the correct arguments. Keyword arguments are placed in a dictionary kwargs and compute is called as compute(**kwargs). The generic solution is

kwargs = {name: getattr(form, name).data for name in arg_names
          if hasattr(form, name)}
result = compute(**kwargs)

The compute(**kwargs) call is equivalent to compute(A=1, b=3, w=0.5) in case kwargs = {'w'=0.5, 'A':1, 'b':3} (recall that the order of the keys in a Python dictionary is undetermined).

Generating the template. It remains to generate the right HTML template. The HTML code depends on what the returned result object from compute contains. Only a human who has the read compute code knows the details of the returned result. Therefore, we leave it to a human to provide the part of the HTML template that renders the result. The file templates/view_results.html contains this human-provided code, while templates/view_forms.html is a completely generic template for the forms:

<form method=post action="">
<table>
  {% for field in form %}
    <tr><td>{{ field.name }}</td> <td>{{ field }}</td>
    <td>{% if field.errors %}
      <ul class=errors>
      {% for error in field.errors %}
        <li>{{ error }}</li>
      {% endfor %}</ul>
    {% endif %}</td></tr>
  {% endfor %}
</table>
<p><input type=submit value=Compute></form></p>

A somewhat generic solution for rendering the results can be provided by default. In the file templates/view_results_default.html we offer a code that checks if results is a string ending in '.png' or other typical file extensions for HTML images, and then writes out the code for an image, and otherwise a string version of the results object is dumped to the web page:

<p>
{% if result != None %}
  {% if type(result) == type("") and
        result[:-4] == '.png' or  result[:-4] == '.gif' or
        result[:-4] == '.jpg' %}
<img src="{{ result }}">
  {% else %}
{{ str(result) }}
  {% endif %}
{% endif %}
</p>

The index function must combine the two pieces of templates. The complete, generic form of this function is then

def index():
    form = InputForm(request.form)
    if request.method == 'POST' and form.validate():
        arg_names = inspect.getargspec(compute).args
        kwargs = {name: getattr(form, name).data
                  for name in arg_names if hasattr(form, name)}
        result = compute(**kwargs)
    else:
        result = None
    # Concatenate view_forms.html and view_results.html
    forms_html   = os.path.join('templates', 'view_forms.html')
    results_html = os.path.join('templates', 'view_results.html')
    view_html    = os.path.join('templates', 'view.html')
    f_forms = open(forms_html, 'r')
    f_res   = open(results_html, 'r')
    f_view  = open(view_html, 'w')
    f_view.write(f_forms.read() + f_res.read())
    f_forms.close();  f_res.close();  f_view.close()
    return render_template(os.path.basename(view_html),
                           form=form, result=result)

if __name__ == '__main__':
    app.run(debug=True)

Application. Let us apply the files above to plot the gamma probability density function

$$ g(x; a, h, A) = \frac{|h|}{\Gamma(a)A}\left(\frac{x}{A}\right)^{ah-1} e^{-\left(\frac{x}{A}\right)^h}, $$ and its cumulative density

$$ G(x; a, h, A) = \int_0^x g(\tau; a, h, A)d\tau,$$ computed by numerically the Trapezoidal rule, for instance. We also want to compute and display the mean value $ A\Gamma(a + 1/h)/\Gamma(a) $ and standard deviation

$$ \sigma = \frac{A}{\Gamma(a)}\sqrt{\Gamma(a + 2/h)\Gamma(a) - \Gamma(a+1/h)^2}.$$ Here, $ \Gamma(a) $ is the gamma function, which can be computed by math.gamma(a) in Python. Below is a compute.py file with the relevant implementations of $ g(x;a,h,A) $ (gamma_density), $ G(x; a, h, A) $ (gamma_cumulative), and a function compute_gamma for making a plot of $ g $ og $ G $ for $ x\in [0,7\sigma] $.

def gamma_density(x, a, h, A):
    # http://en.wikipedia.org/wiki/Gamma_distribution
    xA = x/float(A)
    return abs(h)/(math.gamma(a)*A)*(xA)**(a*h-1)*exp(-xA**h)

def gamma_cumulative(x, a, h, A):
    # Integrate gamma_density using the Trapezoidal rule.
    # Assume x is array.
    g = gamma_density(x, a, h, A)
    r = zeros_like(x)
    for i in range(len(r)-1):
        r[i+1] = r[i] + 0.5*(g[i] + g[i+1])*(x[i+1] - x[i])
    return r

def compute_gamma(a=0.5, h=2.0, A=math.sqrt(2), resolution=500):
    """Return plot and mean/st.dev. value of the gamma density."""
    gah = math.gamma(a + 1./h)
    mean = A*gah/math.gamma(a)
    stdev = A/math.gamma(a)*math.sqrt(
        math.gamma(a + 2./h)*math.gamma(a) - gah**2)
    x = linspace(0, 7*stdev, resolution+1)
    y = gamma_density(x, a, h, A)
    plt.figure()  # needed to avoid adding curves in plot
    plt.plot(x, y)
    plt.title('a=%g, h=%g, A=%g' % (a, h, A))
    if not os.path.isdir('static'):
        os.mkdir('static')
    else:
        # Remove old plot files
        for filename in glob.glob(os.path.join('static', '*.png')):
            os.remove(filename)
    # Use time since Jan 1, 1970 in filename in order make
    # a unique filename that the browser has not chached
    t = str(time.time())
    plotfile1 = os.path.join('static', 'density_%s.png' % t)
    plotfile2 = os.path.join('static', 'cumulative_%s.png' % t)
    plt.savefig(plotfile1)
    y = gamma_cumulative(x, a, h, A)
    plt.figure()
    plt.plot(x, y)
    plt.grid(True)
    plt.savefig(plotfile2)
    return plotfile1, plotfile2, mean, stdev

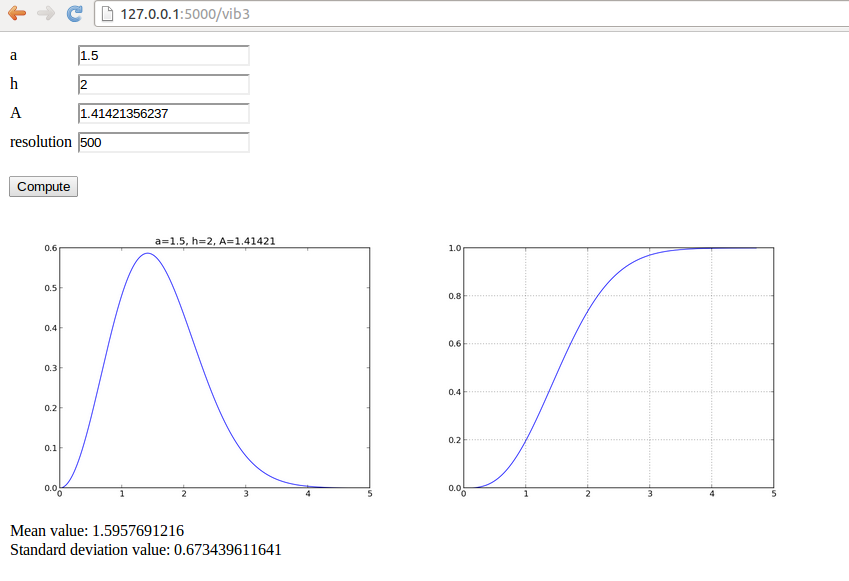

The compute_gamma function returns a tuple of four values. We want output as displayed in Figure 13.

{% if result != None %}
<p>
<table>
<tr>
<td><img src="{{ result[0] }}" width="400"></td>
<td><img src="{{ result[1] }}" width="400"></td>
</tr>
<tr><td>
Mean value: {{ result[2] }} <br>
Standard deviation value: {{ result[3] }}
</td></tr>
</table>
</p>
{% endif %}

To create the web application, we just copy the generic controller.py, model.py, and templates/view_forms.html files, add the application-specific compute.py and templates/view_results.html files given above, and write one line in model.py:
